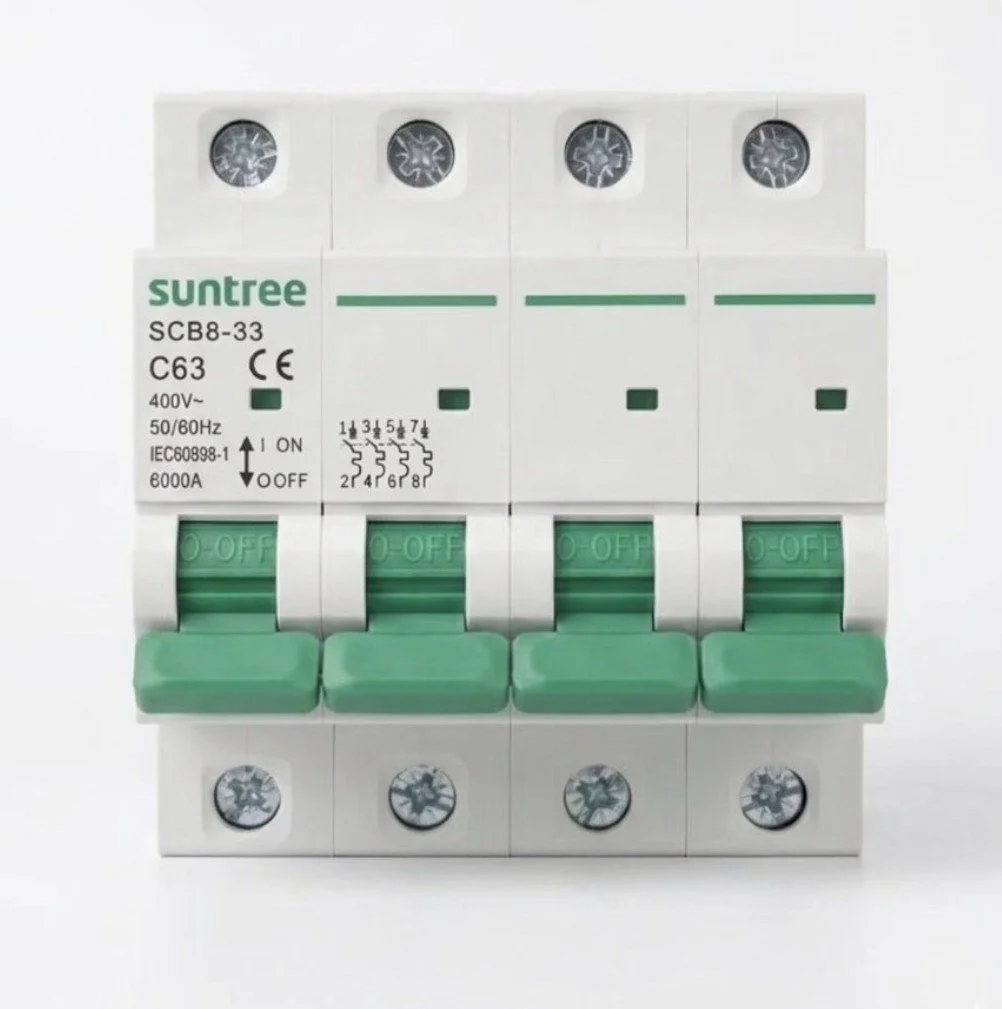

Model SCB8-63nRated current C63Rated Voltage 400V~Frequency 50/60HzStandard IEC60898-1Terminal capacity Up to 25mmBreaking capacity 6kA
Operating temperature About -5 to 50 degree

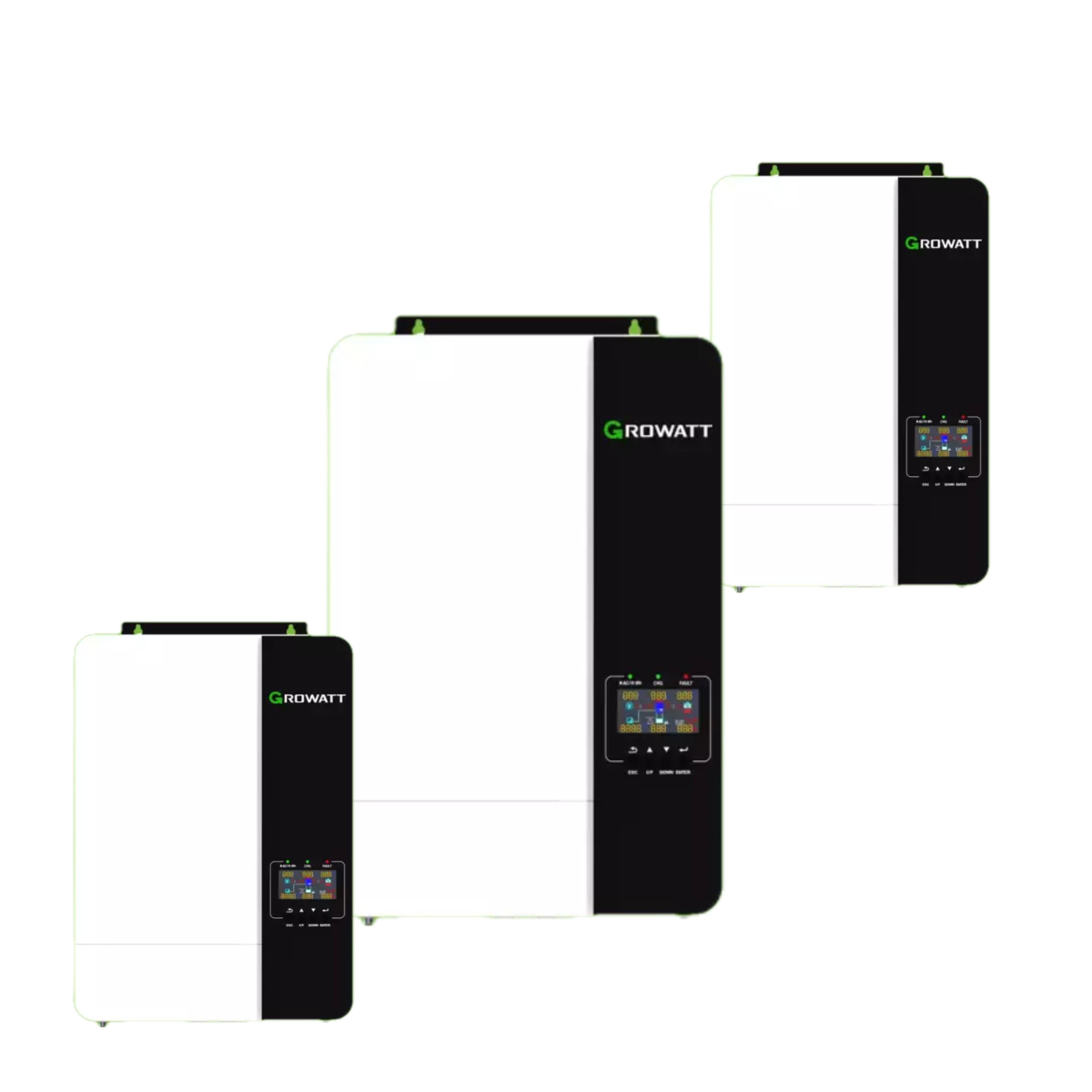

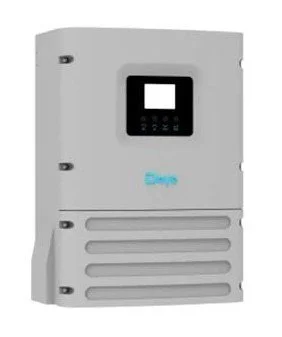

Battery Type Lead-acid or Lithium-ion
Voltage Range (V) 40-60
Max. Charge&Discharge Current (A) 135
Max. PV access power(W) 12000
MPPT Voltage Range (V) 150-425
Max. AC Output Power (VA/W) 6000
Grid Input Current (A) 35

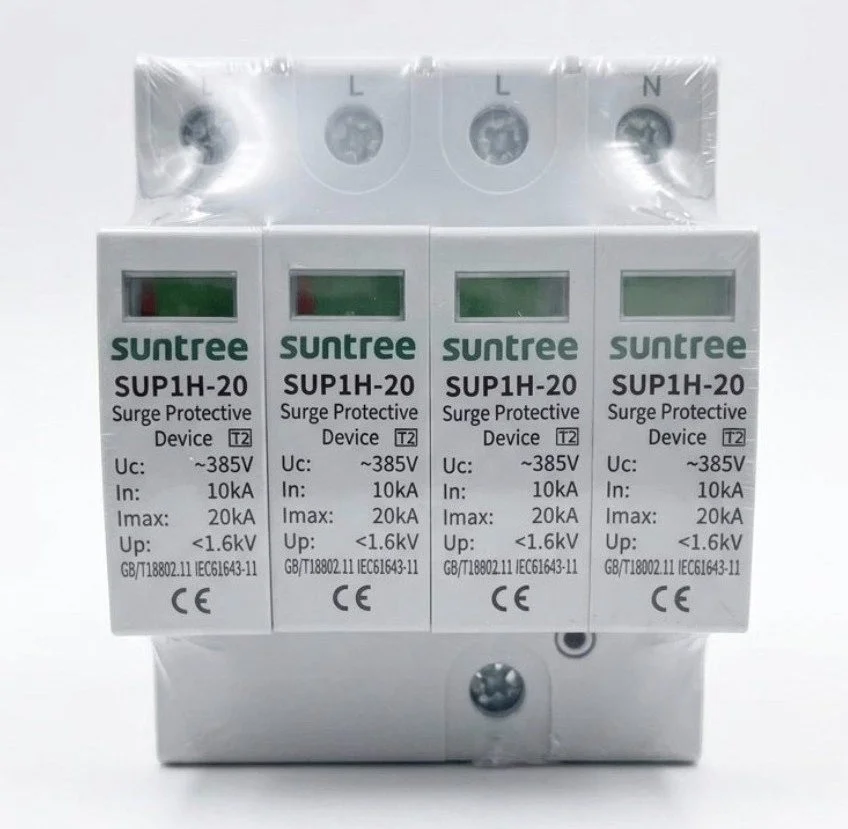

Type AC Surge protective Device (SPD)
Status indicator Usually green = normal, red = failed
Frequency 50Hz
Voltage 230/400 V AC system
System 3 phase + neutral
Uc: ~385VIn: Up to 20-40kA depending on modelImax: Upon to 40-65kA depending on modelUp: <1.6kVStandards GB/T18802.11 IEC61643-11

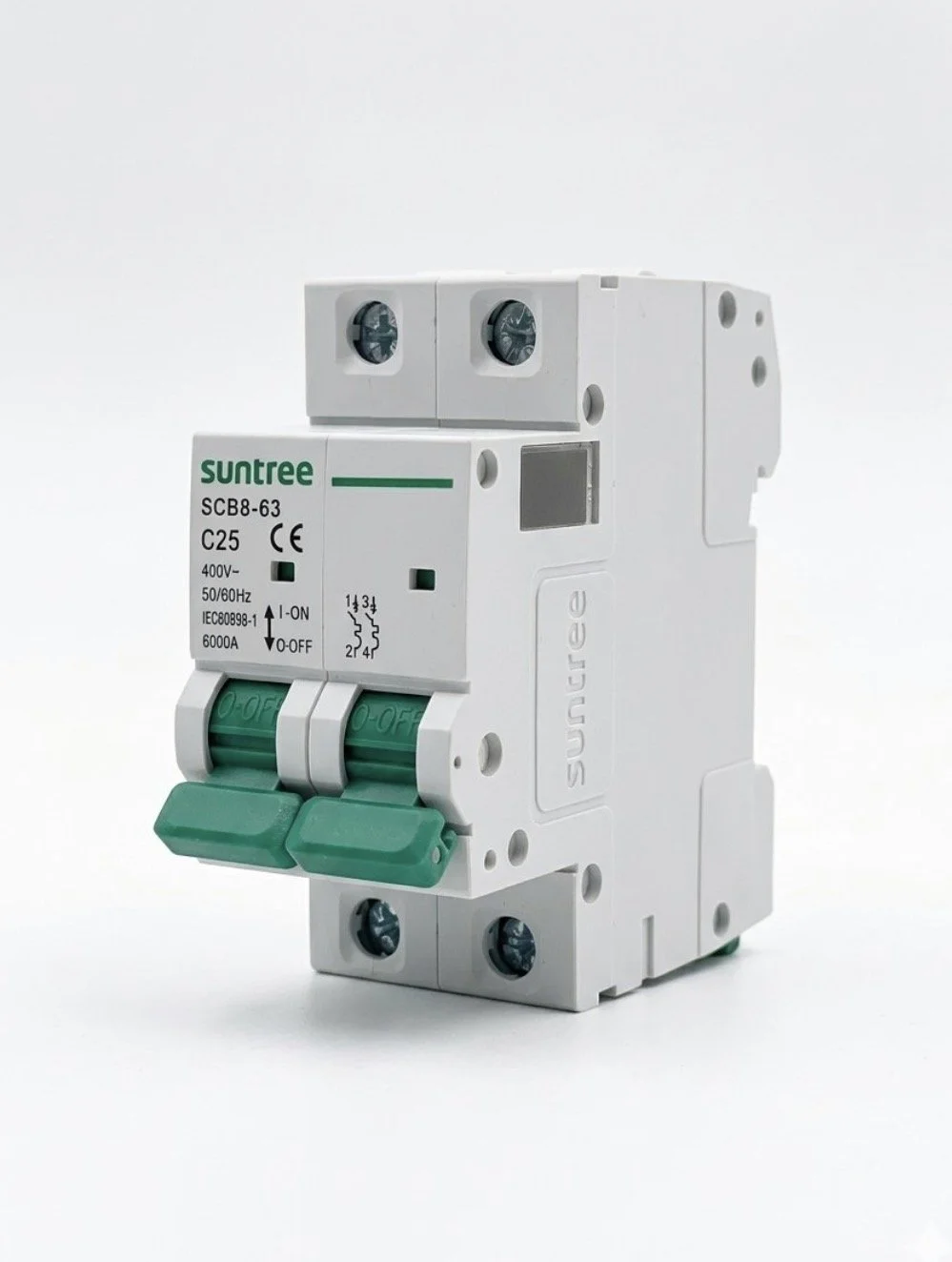

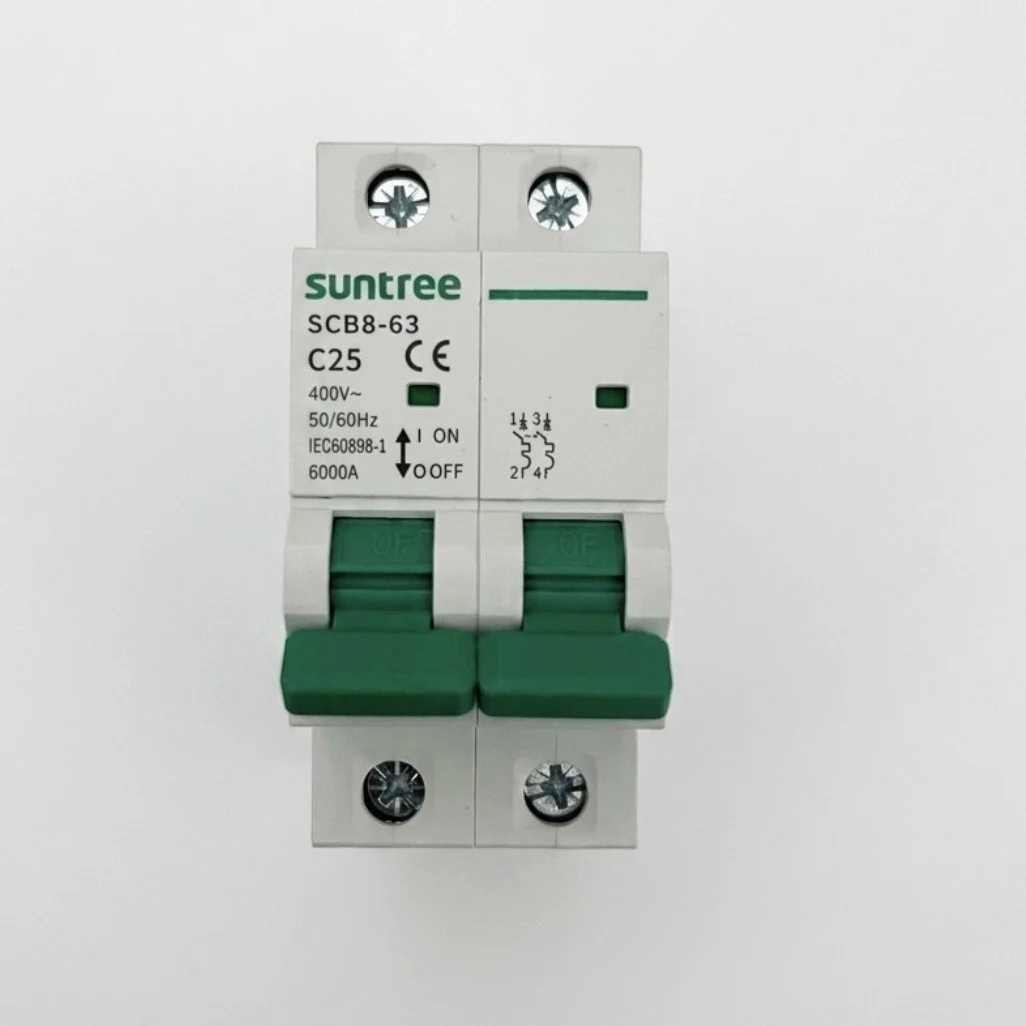

Type MCB
Voltage 230/400 V AC
Frequency 50 Hz
Poles 2P
Mounting DIN rail
Protection Overload + short circuit
Typical trip curve C curve
Breaking capacity Up to 6 kA for SCB8-63; some variants are higher
Standard IEC 60898-1

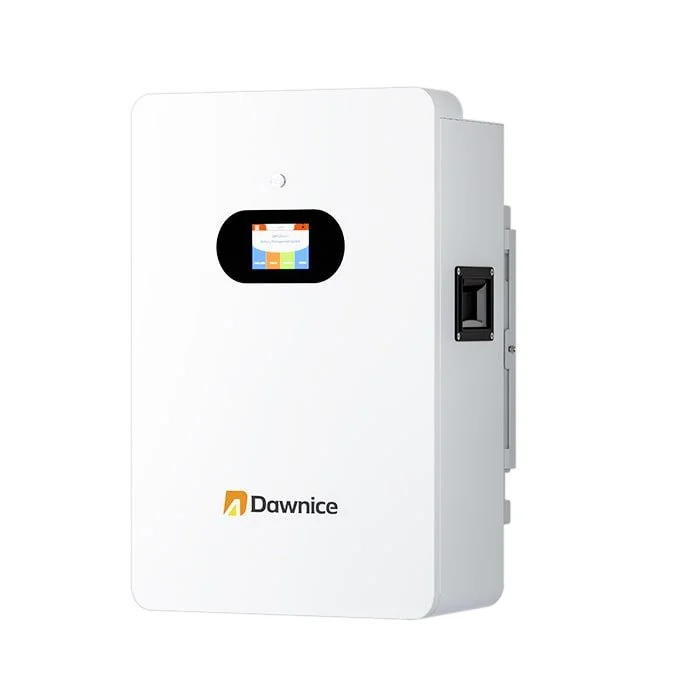

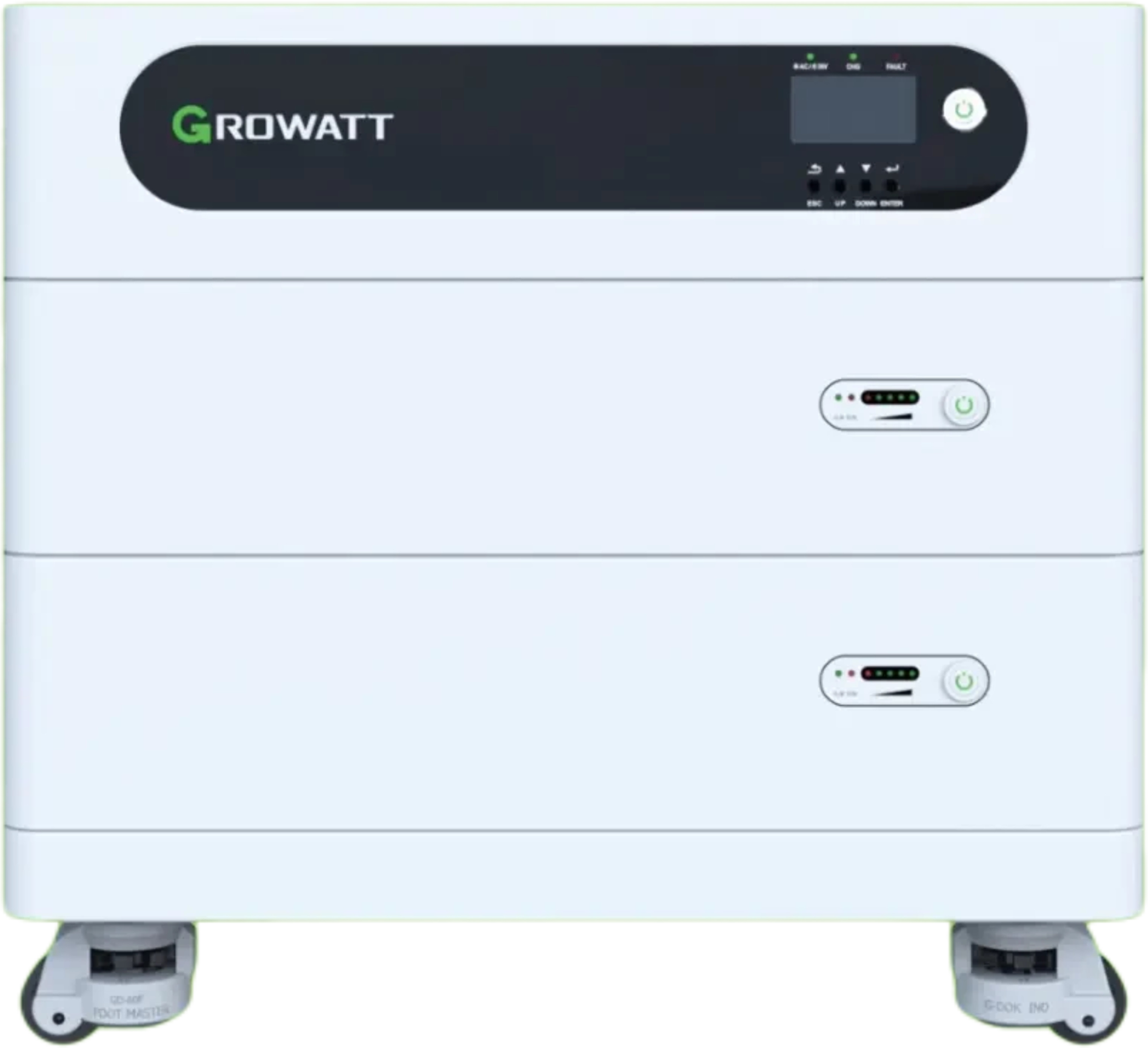

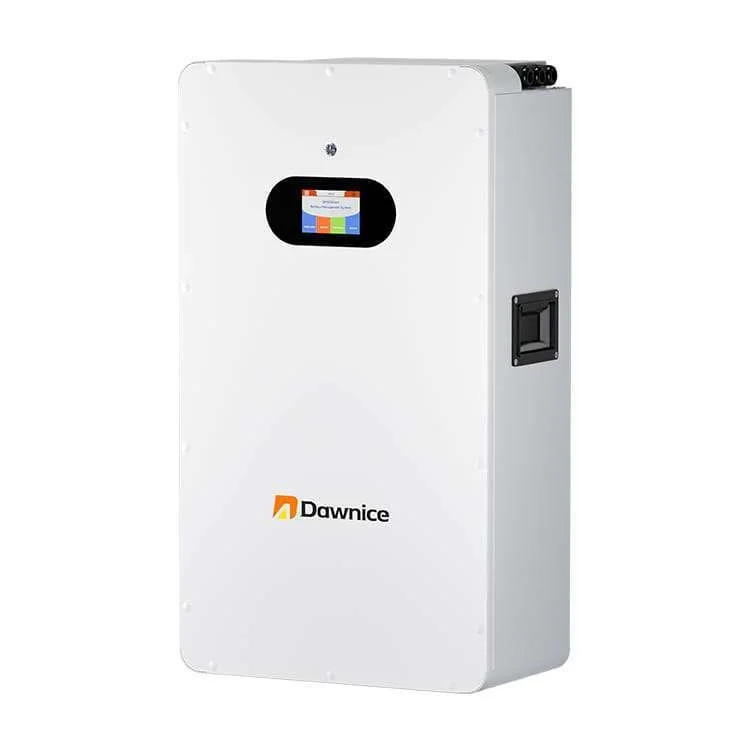

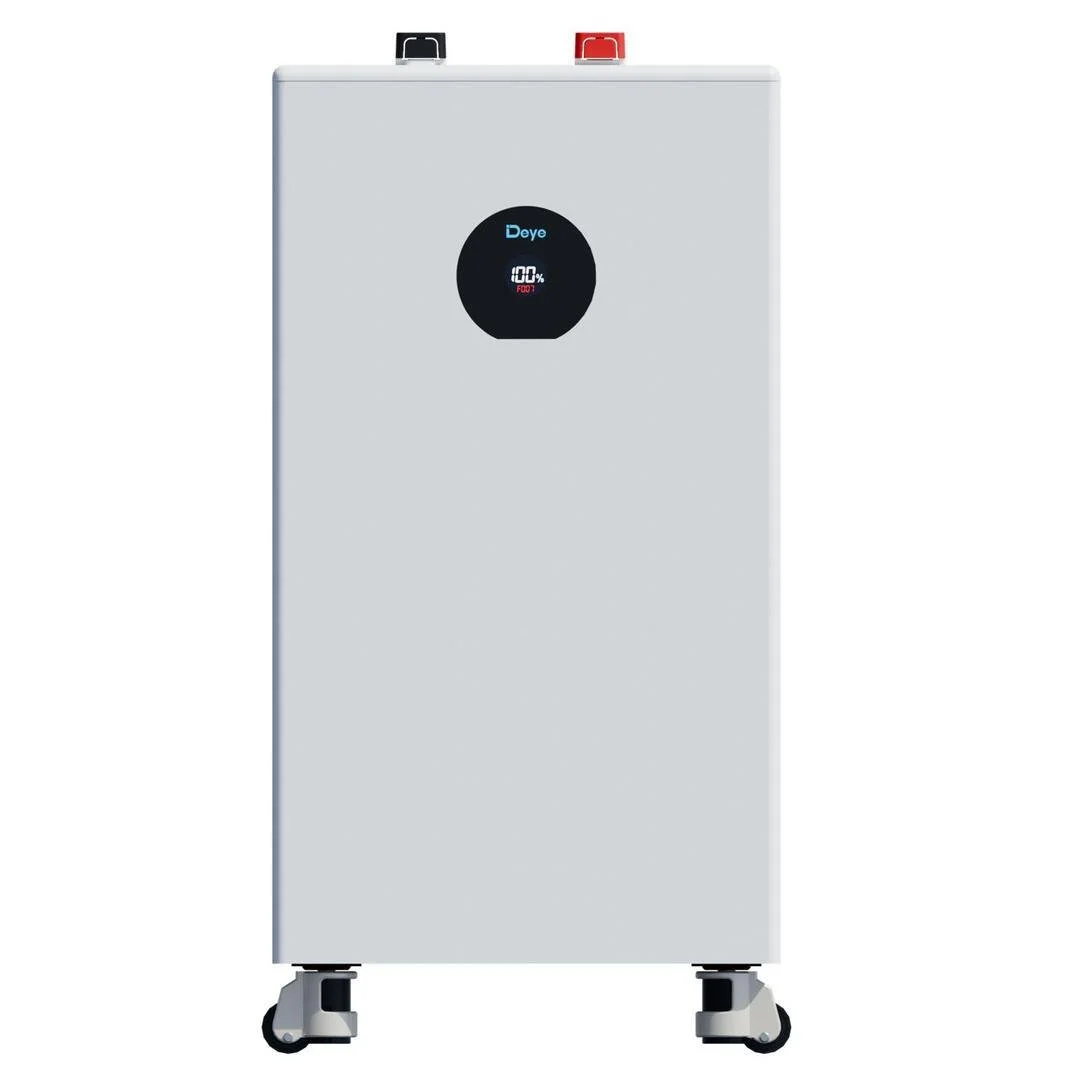

Battery capacity 16kWRated capacity 314AhRated voltage 51.2Voltage range(V) 44.8~57.6Rated Voltage(V) 51.2Max. Charge/Discharge 150A/150AProtection Built-in BMS
IP rating IP54
Weight 127kg
Dimension 460×245×800 mm
Installation Ground-mounted
Parallel connection Up to 15 units

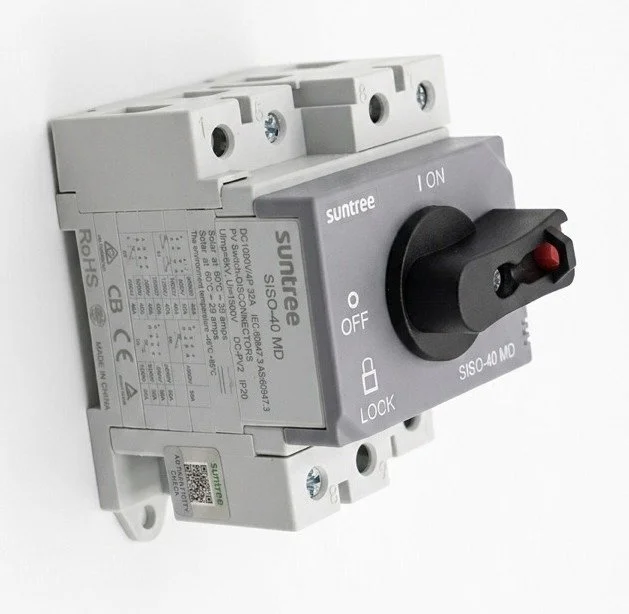

Brand Suntree
Application Solar PV and DC circuits
Common voltage ratings 500V, 600V,800V, 1000V, 1200V, DC
Common current ratings 16A, 20A, 25A, 32A, 40A, 63A
Poles 2P, 4P and other depending on model
Mounting Usually DIN-rail or enclosure mounted
Protection Helps isolate the DC circuit during maintenance
Typical solar use Between PV panels and inverter
Type MCB
Voltage 230/400 V AC
Frequency 50 Hz
Poles 2P
Mounting DIN rail
Protection Overload + short circuit
Typical trip curve C curve
Breaking capacity Up to 6 kA for SCB8-63; some variants are higher
Standard IEC 60898-1

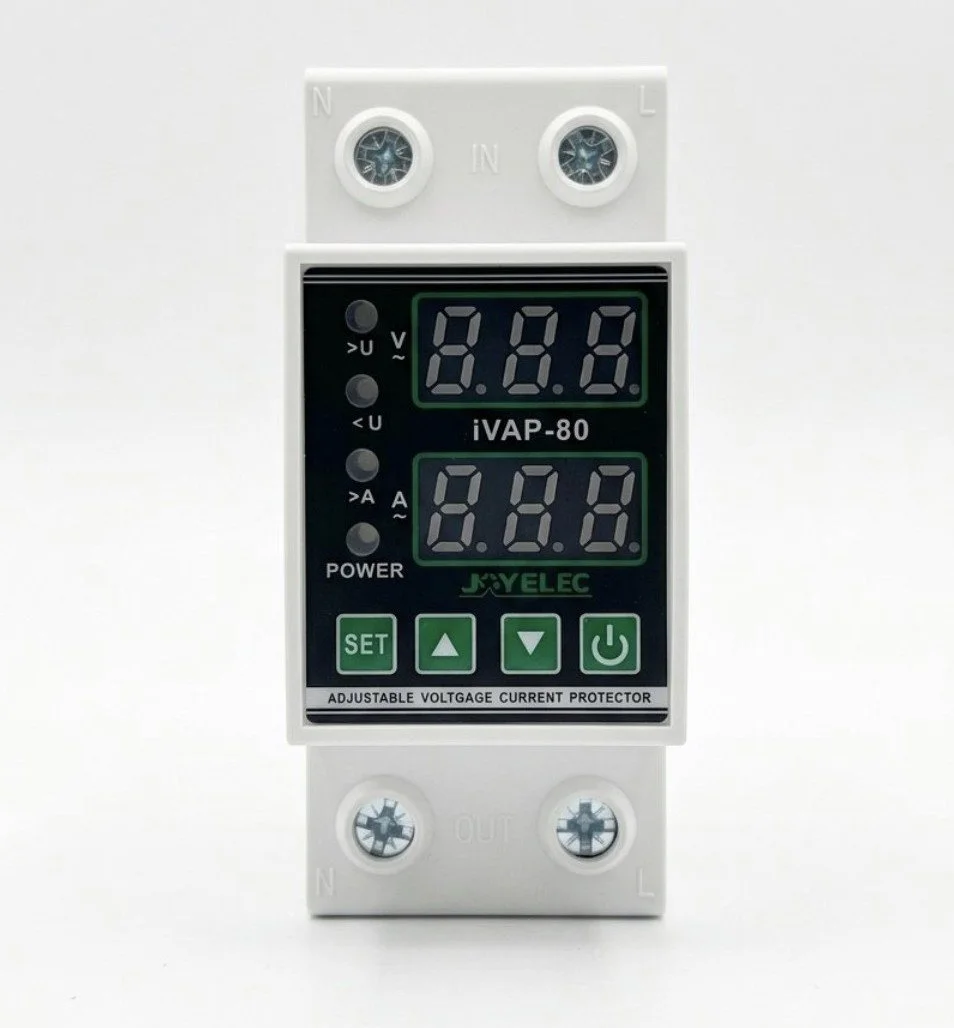

Supply 220-240V AC for common single phase models
Frequency 50/60Hz
Protection over voltage + under voltage
Display Digital voltage/current display on many models
Operation Automatic cut off and recovery
Application Homes, offices, inverter systems, ACs, fridges, electric equipment

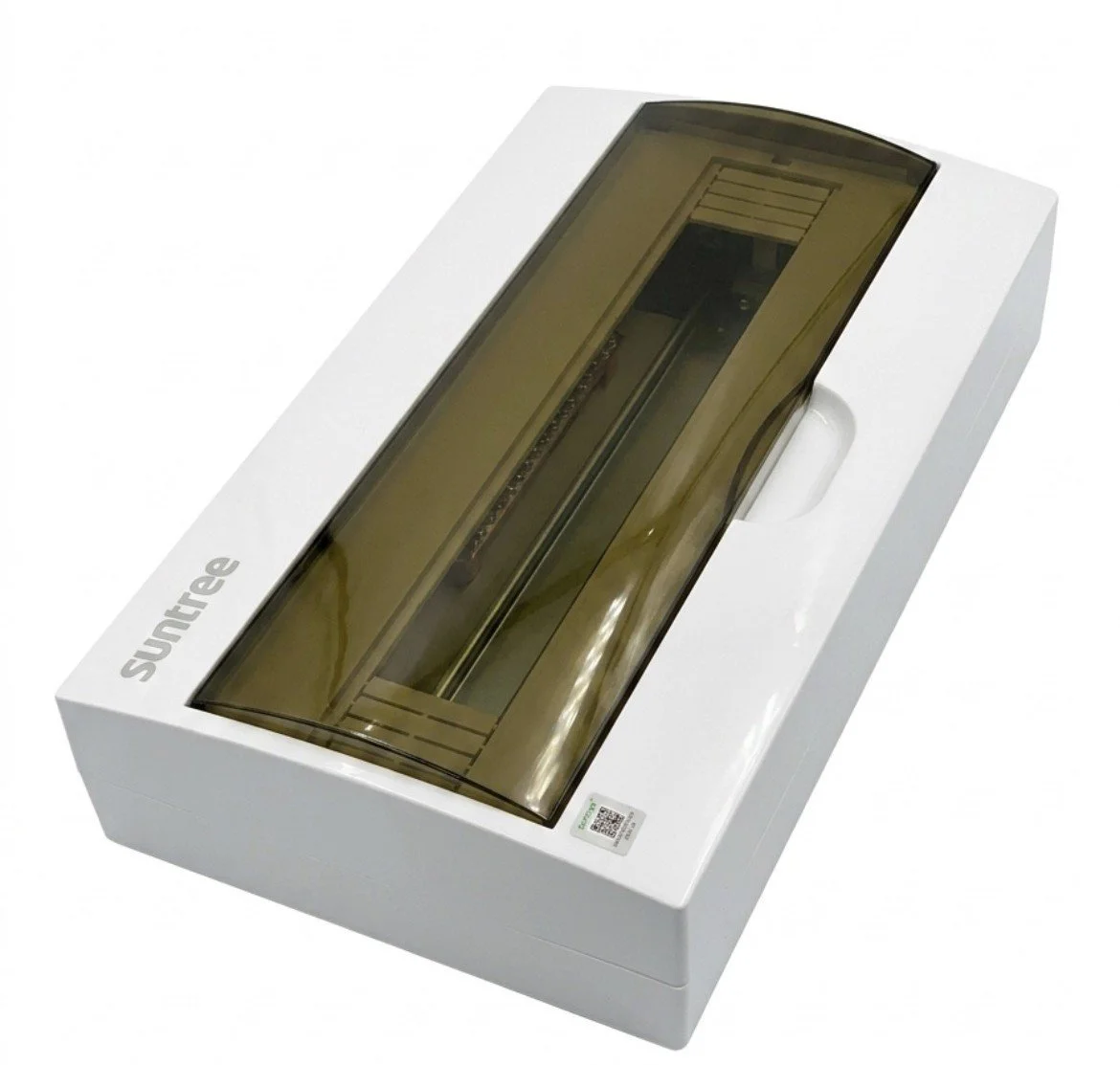

DIN rail Yes
IP rating IP40 or IP65 depending on model
Material ABS plastic; some versions have a transparent PC cover
Mounting Surface or concealed
Protection IP65 versions are dust-tight and protected against water jets

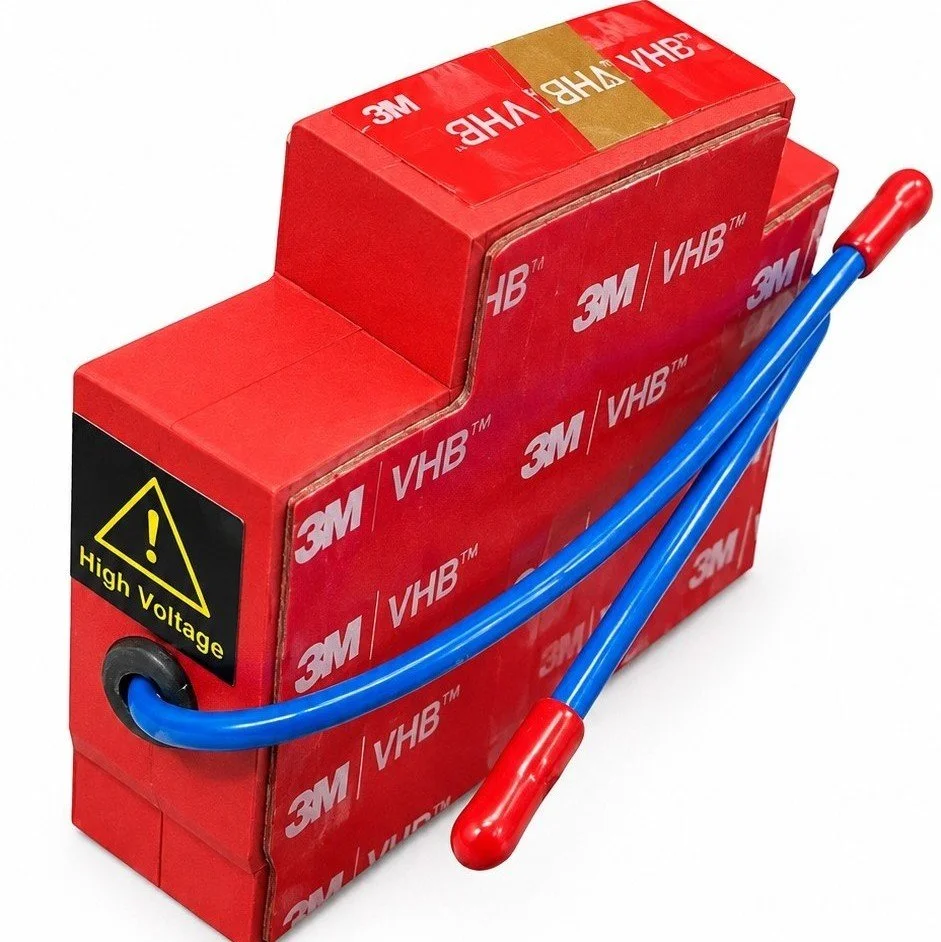

Heat sensitive activator - Activates when the surrounding temperature reaches its rated temperature
Electric initiator - some models can also be trigged electically
Aerosol generator - contains the extinguishing compound

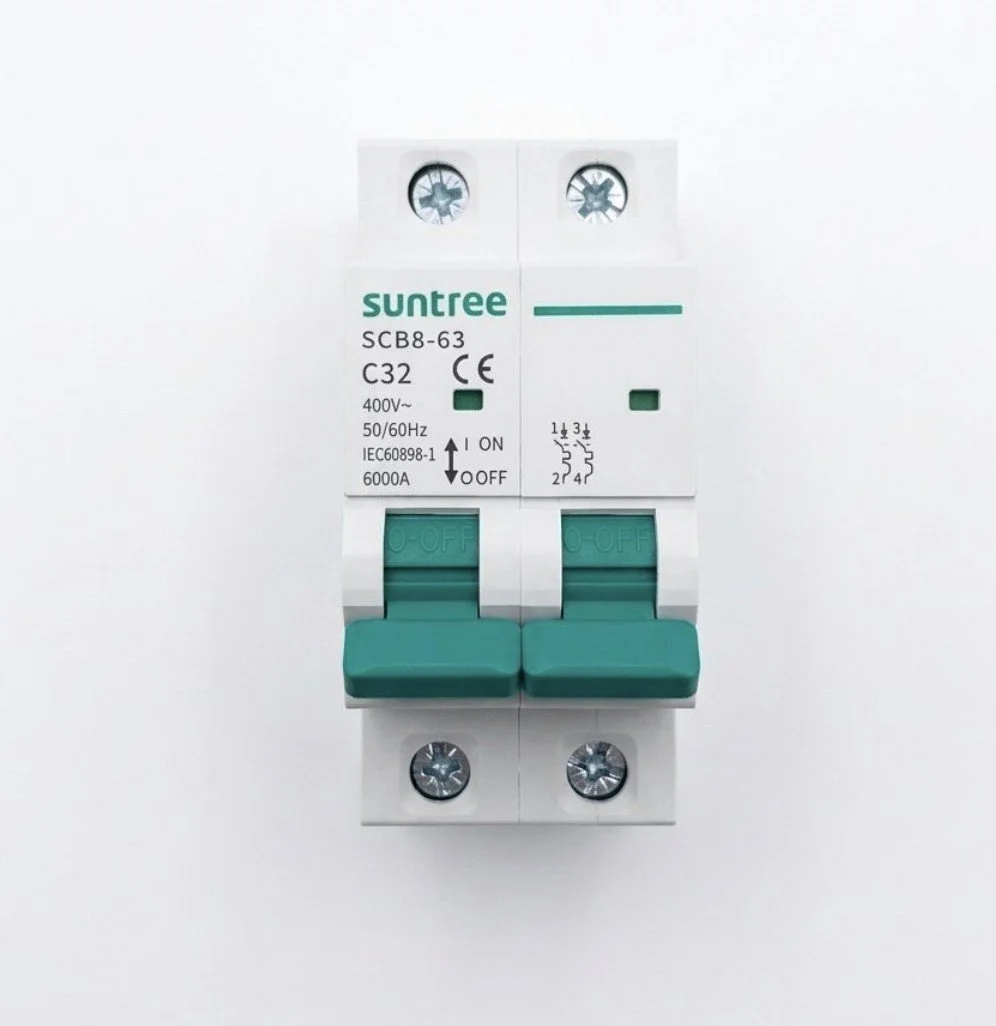

Model SCB8-63
Rated current 32A
Voltage 230/400 V AC
Frequency 50/60 Hz
Breaking capacity 6kA
Protection Overload + short circuit
Mounting 35mm DIN rail
Standard IEC/EN 60898-1
Buying multiple items?
Browse our complete catalog to find everything you need for your home solar installation.
Commercial Projects?
Contact us for volume pricing and custom solutions. Our team will design a system tailored to your business needs.
Terms of Service
-
Panels delivery Within 14 Working days.
Refunds or exchanges for solar panels are not permitted once an order has been confirmed and dispatched from our warehouses.
12 Years Product Warranty
25 Years Linear Power Warranty
-
1. Order Confirmation & Dispatch
Once an order is confirmed and has been dispatched from our warehouse, it is considered a Final Sale. Due to the specialized nature and logistical sensitivity of solar equipment, we cannot permit refunds, returns, or exchanges after the shipment has left our facility.
2. Order Accuracy
Customers are responsible for verifying all technical specifications, quantities, and compatibility before finalizing their purchase. If you notice an error in your order, please contact our support team immediately. We can only facilitate changes if the order has not yet been processed for shipment.
3. Shipping & Handling
Delivery Timelines: While we strive to meet all estimated delivery dates, these are subject to carrier availability and transit conditions.
Logistics: Solar panels are bulky and fragile. Ensure your delivery site is accessible for heavy freight vehicles.
4. Inspection & Damage Claims
While sales are final, we stand by the quality of our products. Upon delivery, please follow these steps:
Immediate Inspection: Carefully inspect all pallets and packaging for signs of damage before signing the Proof of Delivery (POD).
Reporting Damage: If panels are damaged during transit, you must note the damage on the carrier's waybill and contact us within [e.g., 24-48] hours.
Resolution: Valid shipping damage claims or manufacturer defects will be handled via replacement or warranty claim, subject to our inspection and carrier verification.
-
Orders may be cancelled for a full refund only prior to warehouse processing. Once an order has been picked, packed, or staged for loading, a restocking fee may apply, or the sale may be deemed final.
Cancellations & Restocking Fees
We understand that project requirements can change. Our cancellation policy is as follows:
Prior to Processing: Orders cancelled before they are picked or staged in our warehouse are eligible for a full refund.
Post-Processing / Pre-Dispatch: If an order has been staged for shipment but has not yet left our facility, a [e.g., 10-15%] restocking fee will be deducted from the refund to cover labor and logistical costs.
Post-Dispatch: As stated in Section 1, once the order has left our warehouse, no cancellations, refunds, or exchanges will be acceptedscription text goes here
-
The "Final Sale" policy applies to the commercial transaction and logistics. However, it does not void your long-term protection.
Warranty Coverage: All Jinko N-Type panels are backed by their respective Product and Linear Power Warranties (typically 12–15 years for workmanship and 30 years for power output).
Defective Units: If a panel fails to perform according to the manufacturer’s specifications after installation, we will assist you in filing a warranty claim directly with Jinko Solar.
Exclusions: The warranty does not cover damage caused by improper installation, third-party shipping damage not reported at delivery, or "acts of God" (hail, lightning, etc.).
-
We are distributor of solar equipment and is not liable for any labor costs, lost energy production, or incidental expenses incurred during the replacement of a warrantied or damaged product.
